Submersible Pumps

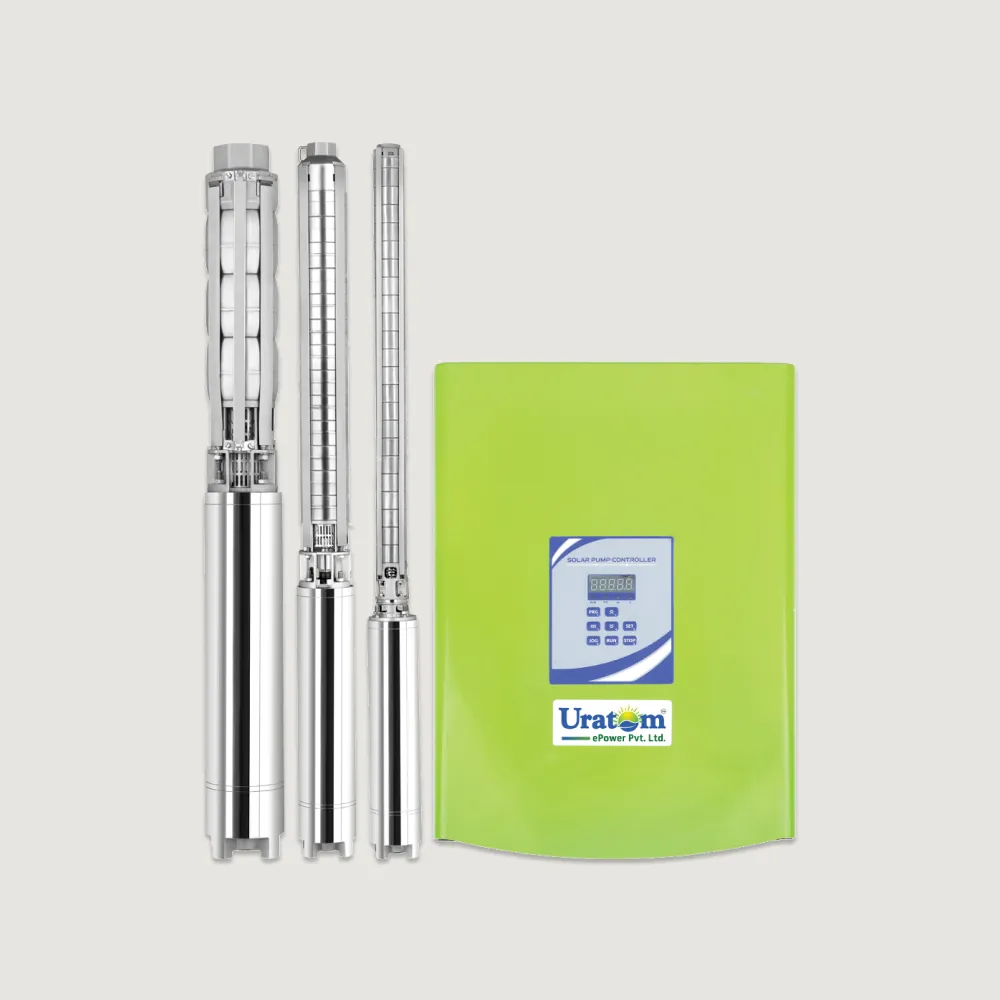

Description | The 6" AC Solar Submersible Pump Set developed by Uratom is
solar-powered water pump system that uses a 6" AC asynchronous Motor
to drive the 6" pump. The system is designed for use in remote areas
where access to grid electricity is limited or non-existent, and where the
availability of solar energy is abundant.
|
---|---|
Technical Specification |
|
SR. No. | V6 | HP | Model | Head in Mtr. | Shut Off Head | Flow Rate In LPD | Outlet | Require Power |
---|---|---|---|---|---|---|---|---|
1 | V6 | 5 | 6SAUE5030 | 30 M | 45M | 168000 | 3" | 4800 Wp |
2 | V6 | 5 | 6SAUE5050 | 50 M | 70 M | 108000 | 2.5" | 4800 Wp |
3 | V6 | 5 | 6SAUE5070 | 70 M | 100 M | 67200 | 2" | 4800 Wp |
4 | V6 | 5 | 6SAUE5100 | 100 M | 120 M | 43200 | 1.5" | 4800 Wp |
5 | V6 | 7.5 | 6SAUE7530 | 30 M | 45 M | 236250 | 3" | 6750 Wp |
6 | V6 | 7.5 | 6SAUE7550 | 50 M | 70 M | 141750 | 2.5" | 6750 Wp |
7 | V6 | 7.5 | 6SAUE7570 | 70 M | 100 M | 94500 | 2" | 6750 Wp |
8 | V6 | 7.5 | 6SAUE75100 | 100 M | 120 M | 60750 | 2" | 6750 Wp |
9 | V6 | 10 | 6SAUE1030 | 30 M | 50 M | 393750 | 3" | 9000 Wp |
10 | V6 | 10 | 6SAUE1050 | 50 M | 70 M | 189000 | 3" | 9000 Wp |
11 | V6 | 10 | 6SAUE1070 | 70 M | 100 M | 126000 | 2.5" | 9000 Wp |
12 | V6 | 10 | 6SAUE10100 | 100 M | 120 M | 81000 | 2" | 9000 Wp |
13 | V6 | 10 | 6SAUE10150 | 150 M | 180 M | 60300 | 2" | 9000 Wp |
14 | V6 | 12.5 | 6SAUE12530 | 30 M | 50 M | 472500 | 3" | 11250 Wp |
15 | V6 | 12.5 | 6SAUE12550 | 50 M | 70 M | 236250 | 3" | 11250 Wp |
16 | V6 | 12.5 | 6SAUE12570 | 70 M | 100 M | 157500 | 3" | 11250 Wp |
17 | V6 | 12.5 | 6SAUE125100 | 100 M | 120 M | 101250 | 2" | 11250 Wp |
18 | V6 | 12.5 | 6SAUE125150 | 150 M | 180 M | 75375 | 2.5" | 11250 Wp |
19 | V6 | 12.5 | 6SAUE125200 | 200 M | 230 M | 54000 | 2" | 11250 Wp |
20 | V6 | 12.5 | 6SAUE125250 | 250 M | 280 M | 45000 | 1.5" | 11250 Wp |
21 | V6 | 12.5 | 6SAUE125300 | 300 M | 320 M | 35150 | 1.5" | 11250 Wp |
22 | V6 | 15 | 6SAUE1530 | 30 M | 50 M | 513000 | 3" | 13500 Wp |
23 | V6 | 15 | 6SAUE1550 | 50 M | 70 M | 283500 | 3" | 13500 Wp |
24 | V6 | 15 | 6SAUE1570 | 70 M | 100 M | 189000 | 3" | 13500 Wp |
25 | V6 | 15 | 6SAUE15100 | 100 M | 120 M | 121500 | 3" | 13500 Wp |
26 | V6 | 15 | 6SAUE15150 | 150 M | 180 M | 90450 | 3" | 13500 Wp |
27 | V6 | 15 | 6SAUE15200 | 200 M | 230 M | 67500 | 2.5" | 13500 Wp |
28 | V6 | 15 | 6SAUE15250 | 250 M | 280 M | 54000 | 2" | 13500 Wp |
29 | V6 | 15 | 6SAUE15300 | 300 M | 320 M | 45250 | 1.5" | 13500 Wp |
30 | V6 | 15 | 6SAUE15350 | 350 M | 380 M | 40890 | 1.5" | 13500 Wp |
31 | V6 | 15 | 6SAUE15400 | 400 M | 430 M | 33640 | 1.5" | 13500 Wp |
32 | V6 | 17.5 | 6SAUE17530 | 30 M | 50 M | 551250 | 4" | 15750 Wp |
33 | V6 | 17.5 | 6SAUE17550 | 50 M | 70 M | 330750 | 3" | 15750 Wp |
34 | V6 | 17.5 | 6SAUE17570 | 70 M | 100 M | 220500 | 3" | 15750 Wp |
35 | V6 | 17.5 | 6SAUE175100 | 100 M | 120 M | 141750 | 3" | 15750 Wp |
36 | V6 | 17.5 | 6SAUE175150 | 150 M | 180 M | 105525 | 3" | 15750 Wp |
37 | V6 | 17.5 | 6SAUE175200 | 200 M | 230 M | 78750 | 2.5" | 15750 Wp |
38 | V6 | 17.5 | 6SAUE175250 | 250 M | 280 M | 63000 | 2.5" | 15750 Wp |
39 | V6 | 17.5 | 6SAUE175300 | 300 M | 320 M | 55890 | 2" | 15750 Wp |
40 | V6 | 17.5 | 6SAUE175350 | 350 M | 380 M | 45980 | 1.5" | 15750 Wp |
41 | V6 | 17.5 | 6SAUE175400 | 400 M | 430 M | 40650 | 1.5" | 15750 Wp |
42 | V6 | 20 | 6SAUE2030 | 30 M | 50 M | 630000 | 4" | 18000 Wp |
43 | V6 | 20 | 6SAUE2050 | 50 M | 70 M | 378000 | 3" | 18000 Wp |
44 | V6 | 20 | 6SAUE2070 | 70 M | 100 M | 252000 | 3" | 18000 Wp |
45 | V6 | 20 | 6SAUE20100 | 100 M | 120 M | 162000 | 3" | 18000 Wp |
46 | V6 | 20 | 6SAUE20150 | 150 M | 180 M | 120600 | 3" | 18000 Wp |
47 | V6 | 20 | 6SAUE20200 | 200 M | 230 M | 90000 | 3" | 18000 Wp |
48 | V6 | 20 | 6SAUE20250 | 250 M | 280 M | 72000 | 2.5" | 18000 Wp |
49 | V6 | 20 | 6SAUE20300 | 300 M | 320 M | 67000 | 2" | 18000 Wp |
50 | V6 | 20 | 6SAUE20350 | 350 M | 380 M | 57000 | 2" | 18000 Wp |
51 | V6 | 20 | 6SAUE20400 | 400 M | 430 M | 50000 | 1.5" | 18000 Wp |
Sr. No. | Parts Name | Material |
---|---|---|
1 | Motor Base, Upper Housing & Lower Housing | Stainless Steel |
2 | Pump N.R.V & Pump Suction | Stainless Steel |
3 | Bowl & Impeller | SS304 |
