Openwell

AC Solar

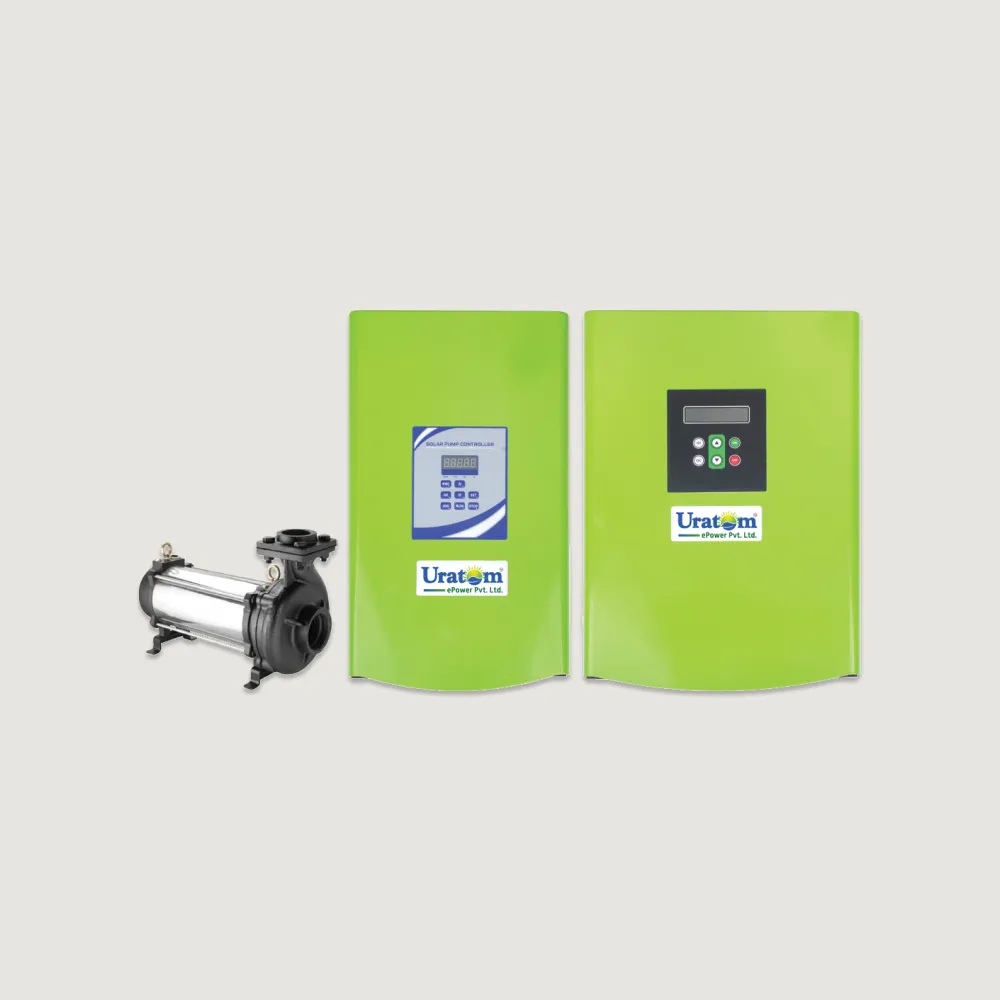

Description Uratom has specially designed AC Solar Openwell Series for Open Irrigation Applications. Suitable for Well, Lake, River or Sump.

  • Water filled AC Solar motor for better performance and easy repairability in remote areas.
  • CED coated & SS 202 casting static parts in motor and pump for anti-corrosion.
  • CED coated casing and impellers for higher discharge, smooth operation, and long lifespan.
  • Maintenance cost is lower than borewell pump sets.
Technical Specification
  • Water Filled AC Motor
  • Higher 2880 RPM
  • HP Range 3.0 to 10 HP
  • 50 Hz operation
  • Flow Range up to 700 LPM

Technical Specification

SR. No. HP Model Head in Mtr. Flow Rate in LPD Pump Suction inch Pump Delivery inch Require Power
1 3.0 9SAUE320 20 147000 2.5” 2.5” 2700 Wp
2 5.0 9SAUE520 20 235200 2.5” 2.5” 4800 Wp
3 7.5 9SAUE7520 20 330750 3.0” 3.0” 6750 Wp
4 7.5 9SAUE7530 30 236250 3.0” 3.0” 6750 Wp
5 10.0 9SAUE1020 20 441000 3.0” 3.0” 9000 Wp
6 10.0 9SAUE1030 30 315000 3.0” 3.0” 9000 Wp
