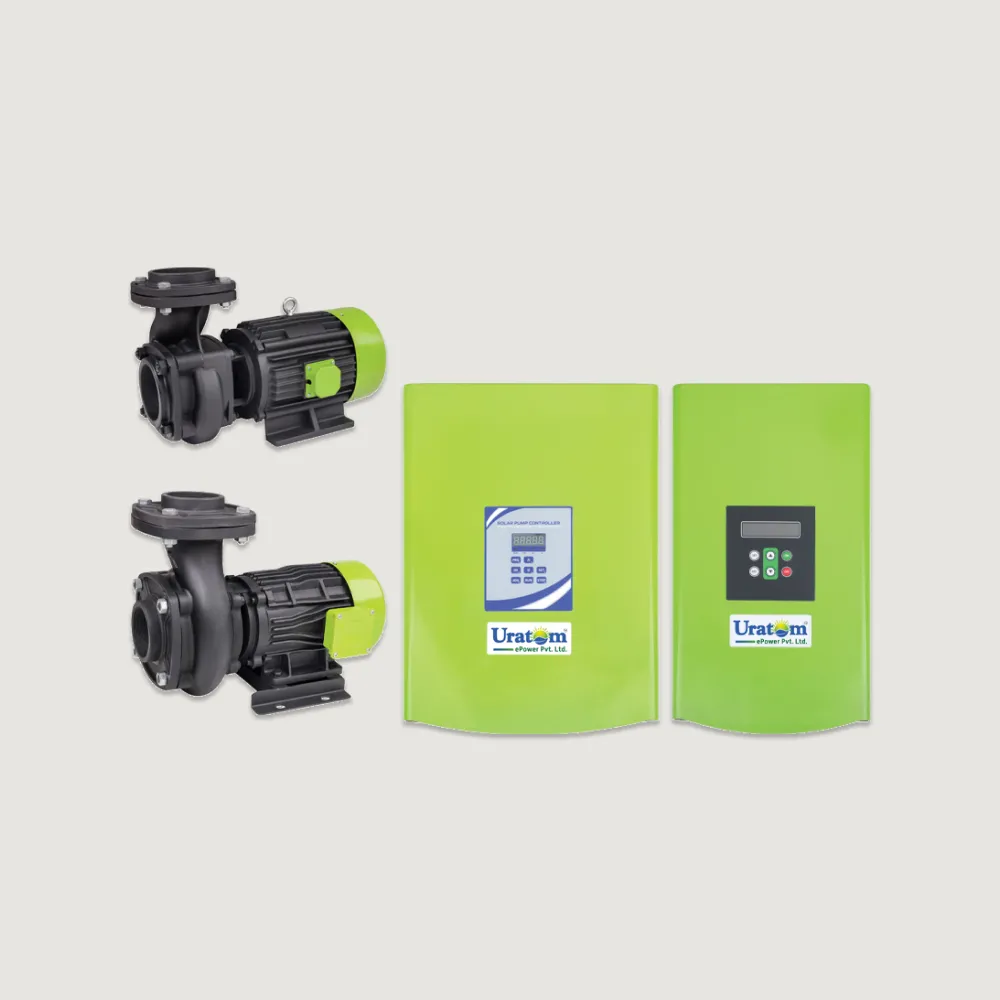

BLDC/PMSM Pumpset

Surface Monoblock AC

Description Uratom has specially designed Surface Monoblock Induction Series for Open Irrigation Applications. Suitable for Lake, Sump or canal.

  • Air cool Surface AC Monoblock for higher performance with zero maintenance.
  • CED coated casting static parts in motor and pump for anti-corrosion.
  • CED coated Casing and impellers for Higher Discharge, Smooth Operation & Long life span.
  • High grade aluminum alloy board.
Technical Specification
  • Air Cooled Motor
  • Higher 3150 RPM
  • HP Range 1 to 10 HP
  • 50 Hz operation DC Range

Technical Specification

SR. No. HP Model Head in Mtr. Shut Off Head Suction Delivery Flow Rate In LPD Require Power
1 0.5 SMAUE0510 10 M 12 M 1.5 1.5 53460 540 Wp
2 1 SMAUE1010 10 M 12 M 1.5 1.5 89100 900 Wp
3 1 SMAUE1020 20 M 25 M 1.5 1.5 44100 900 Wp
4 1 SMAUE1030 30 M 40 M 1.5 1.5 31500 900 Wp
5 2 SMAUE2010 10 M 12 M 2 2 178200 1800 Wp
6 2 SMAUE2020 20 M 25 M 2 1.5 90000 1800 Wp
7 3 SMAUE3010 10 M 12 M 3 3 267300 2700 Wp
8 3 SMAUE3020 20 M 25 M 2.5 2 132300 2700 Wp
9 5 SMAUE5010 10 M 12 M 3 4 475200 4800 Wp
10 5 SMAUE5020 20 M 25 M 3 2.5 235200 4800 Wp
11 7.5 SMAUE7510 10 M 12 M 4 4 668250 6750 Wp
12 7.5 SMAUE7520 20 M 25 M 3 3 330750 6750 Wp
13 10 SMAUE10010 10 M 12 M 4 4 891000 9000 Wp
14 10 SMAUE10020 20 M 25 M 3 3 441000 9000 Wp
